Kenwood Limit Switch Boxes are ideally suitable for quarter-turn and linear valve applications in extreme process environments. They are available in Weatherproof and Flameproof version, with a wide choice of material (Die Cast Aluminium, Stainless Steel, or Corrosive Resistance Engineered Resin) and the design prohibits wrong assembly of switch box onto valve to ensure a fail-safe system. All our quarter turn Switch boxes come with a common mounting kit suitable for most actuator models.
Weatherproof Switch Box for Quarter Turn Valves: Series-007
- Weatherproof to IP67 as per IEC 60529
- 360° Open/Close visual indication with polycarbonate dome
- Pressure die cast Aluminium body (FRP/SS optional)
- 1/2” NPT; M20x1.5; PG 13.5; 3/4" ET Conduit entries
- NAMUR shaft for direct mounting
- Tool-free spring loaded quick cam adjustment
- Prewired terminal strip
- Optional terminal strip for Solenoid valve wiring
- One mounting kit/bracket(compatible with most actuator models) provided
- PCB for compactness
- Number of switches/sensors: 4 (maximum)
- Fool proof design with wrong assemble protection
Weatherproof Switch Box for Quarter Turn Valves: Series-003
- Weatherproof to IP67 as per IEC 60529
- 360° Open/Close visual indication with polycarbonate dome
- Engineered Resin (Nylon 66) body for corrosive atmosphere
- 1/2” NPT; M20x1.5; PG 13.5; 3/4" ET Conduit entries
- NAMUR shaft for direct mounting
- Tool-free spring loaded quick cam adjustment
- Prewired terminal strip
- Optional terminal strip for Solenoid valve wiring
- One mounting kit/bracket(compatible with most actuator models) provided
- PCB for compactness
- Number of switches/sensors: 4 (maximum)
- Fool proof design with wrong assemble protection

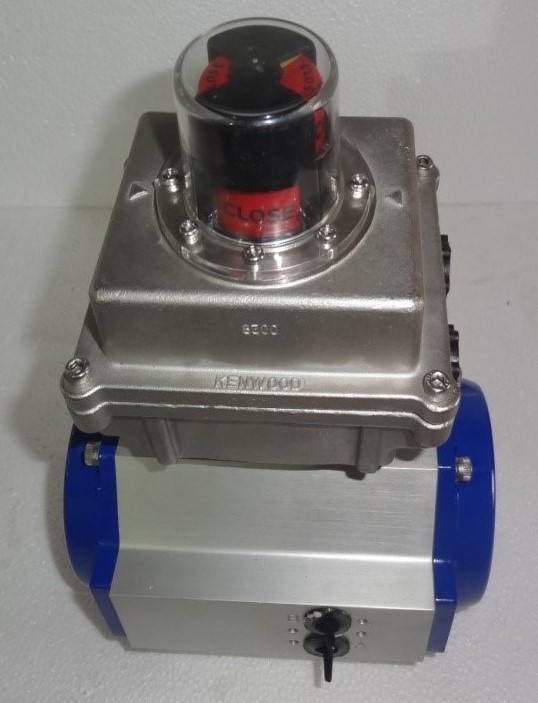

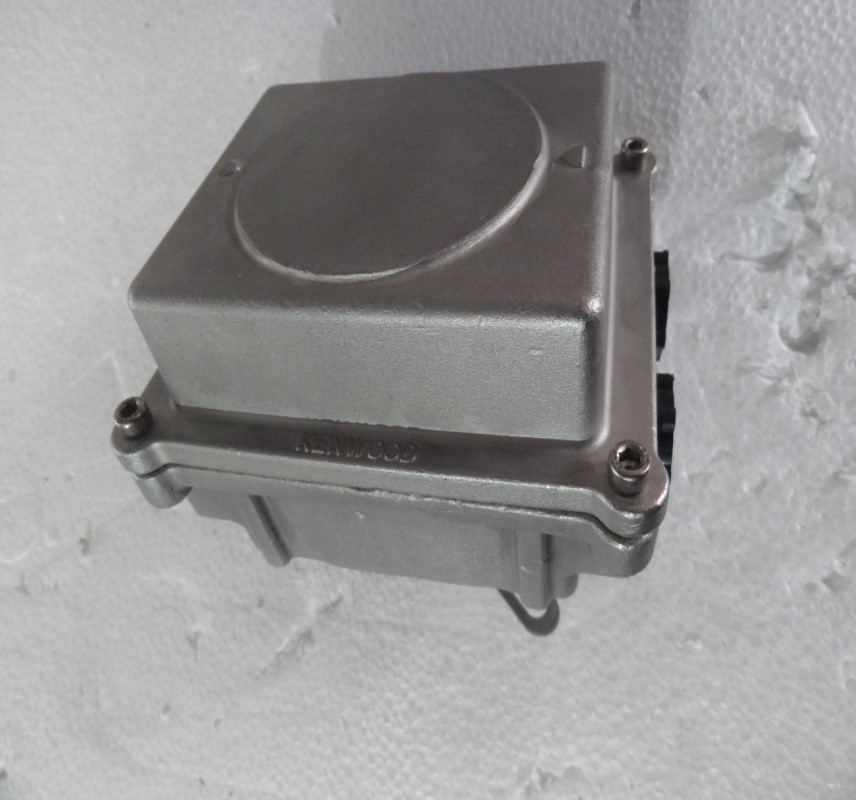

Weatherproof Switch Box for Quarter Turn Valves: Series-004
- Weatherproof to IP67 as per IEC 60529
- 360° Open/Close visual indication with polycarbonate dome
- SS316(CF8M) investment cast body for corrosive atmosphere
- 1/2” NPT; M20x1.5; PG 13.5; 3/4" ET Conduit entries
- NAMUR shaft for direct mounting
- Tool-free spring loaded quick cam adjustment
- Prewired terminal strip
- Optional terminal strip for Solenoid valve wiring
- One mounting kit/bracket(compatible with most actuator models) provided
- PCB for compactness
- Number of switches/sensors: 4 (maximum)
- Fool proof design with wrong assemble protection
Weatherproof Switch Box for Diaphragm Valves: Series-007L
- Weatherproof to IP67 as per IEC 60529
- Pressure die cast Aluminium body (FRP/SS optional)
- 1/2” NPT; M20x1.5; PG 13.5; 3/4" ET Conduit entries
- Suitable for Valve/Actuator travel up to 175mm
- Tool-free spring loaded quick cam adjustment
- Prewired terminal strip
- Optional terminal strip for Solenoid valve wiring
- One mounting kit/bracket(compatible with most actuator models) provided
- PCB for compactness
- Number of switches/sensors: 4 (maximum)
Weatherproof Switch Box for Diaphragm Valves: Series-003L
- Weatherproof to IP67 as per IEC 60529
- Engineered Resin (Nylon 66) body for corrosive atmosphere
- 1/2” NPT; M20x1.5; PG 13.5; 3/4" ET Conduit entries
- Suitable for Valve/Actuator travel up to 110mm
- Tool-free spring loaded quick cam adjustment
- Prewired terminal strip
- Optional terminal strip for Solenoid valve wiring
- One mounting kit/bracket(compatible with most actuator models) provided
- PCB for compactness
- Number of switches/sensors: 4 (maximum)
Weatherproof Switch Box for Diaphragm valves: Series-004L
- weatherproof to IP67 as per IEC 60529
- SS316(CF8M) investment cast body for corrosive atmosphere
- 1/2” NPT; M20x1.5; PG13.5; 3/4"ET Conduit entries
- Suitable for Valve/Actuator travel up to 175mm
- Tool-free spring loaded quick cam adjustment
- Prewired terminal strip
- Optional terminal strip for Solenoid valve wiring
- One mounting kit/bracket(compatible with most actuator models) provided
- PCB for compactness
- Number of switches/sensors: 4 (maximum)
Weatherproof Switch Box for Gate Valves, Globe Valves and Cylinders: Series-007L
- Weatherproof to IP67 as per IEC 60529
- Pressure die cast Aluminium body (FRP/SS optional)
- 1/2” NPT; M20x1.5; PG 13.5; 3/4" ET Conduit entries
- Suitable for Valve/Actuator travel from 50mm to 775mm
- Tool-free spring loaded quick cam adjustment
- Prewired terminal strip
- Optional terminal strip for Solenoid valve wiring
- One mounting kit/bracket(compatible with most actuator models) provided
- PCB for compactness
- Number of switches/sensors: 4 (maximum)
Weatherproof Switch Box for Gate Valves, Globe Valves and Cylinders: Series-003L
- Weatherproof to IP67 as per IEC 60529
- Engineered Resin (Nylon 66) body for corrosive atmosphere
- 1/2” NPT; M20x1.5; PG 13.5; 3/4" ET Conduit entries
- Suitable for Valve/Actuator travel up to 110mm
- Tool-free spring loaded quick cam adjustment
- Prewired terminal strip
- Optional terminal strip for Solenoid valve wiring
- One mounting kit/bracket(compatible with most actuator models) provided
- PCB for compactness
- Number of switches/sensors: 4 (maximum)
Weatherproof Switch Box for Gate Valves, Globe Valves and Cylinders: Series-004L
- Weatherproof to IP67 as per IEC 60529
- SS316(CF8M) investment cast body for corrosive atmosphere
- 1/2” NPT; M20x1.5; PG13.5; 3/4"ET Conduit entries
- Suitable for Valve/Actuator travel up to 775mm
- Tool-free spring loaded quick cam adjustment
- Prewired terminal strip
- Optional terminal strip for Solenoid valve wiring
- One mounting kit/bracket(compatible with most actuator models) provided
- PCB for compactness
- Number of switches/sensors: 4 (maximum)

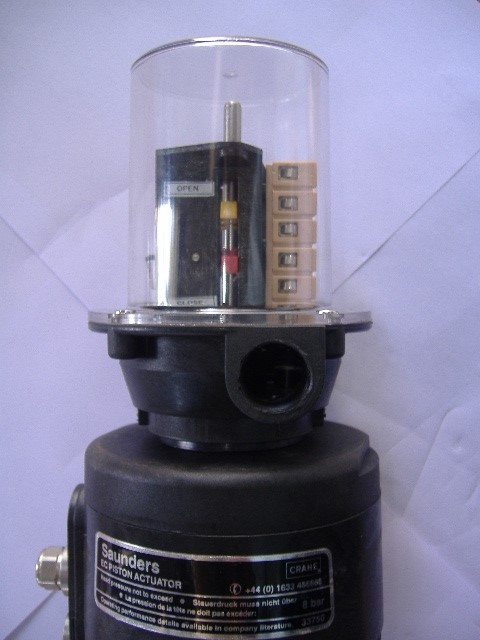

Weatherproof Switch Box for Diaphragm valves (Food/Pharma/Beverage industry): Series-OS009
- Weatherproof to IP67 as per IEC 60529
- Engineered Resin (Nylon 66) body for corrosive atmosphere
- Open/Close visual indication with polycarbonate dome
- 1/2” NPT; M20x1.5; PG 13.5; 3/4" ET Conduit entries
- Prewired terminal strip
- Tool-free quick switch setting
- Optional in-built Solenoid valve
- Mechanical or proximity switches can be mounted
- Cable entry can be oriented at any position (360°)
- Specially suitable for CRANE EC, S360 & SSC Actuator
Supervisory Switches/Tamper Switches for Fire Fighting system (For Butterfly Valves): Series-007
- Weatherproof to IP67 as per IEC 60529
- 360° Open/Close visual indication with polycarbonate dome
- Pressure die cast Aluminium body (SS optional)
- 1/2” NPT; M20x1.5; PG 13.5; 3/4" ET Conduit entries
- UL Approved Honeywell micro switches with high conductive silver contacts for longer life
- Tool-free spring loaded quick cam adjustment
- Prewired terminal strip
- PCB for compactness
- Optional cover tamper switch
- Fool proof design with wrong assemble protection
Supervisory Switches/Tamper Switches for Fire Fighting system (OS & Y Type Gate valve): Series-007LG
- Weatherproof to IP67 as per IEC 60529
- Pressure die cast Aluminium body (SS optional)
- 1/2” NPT; M20x1.5; PG 13.5; 3/4" ET Conduit entries
- UL Approved Honeywell micro switches with high conductive silver contacts for longer life
- Tool-free spring loaded quick cam adjustment
- Prewired terminal strip
- PCB for compactness
- Optional cover tamper switch

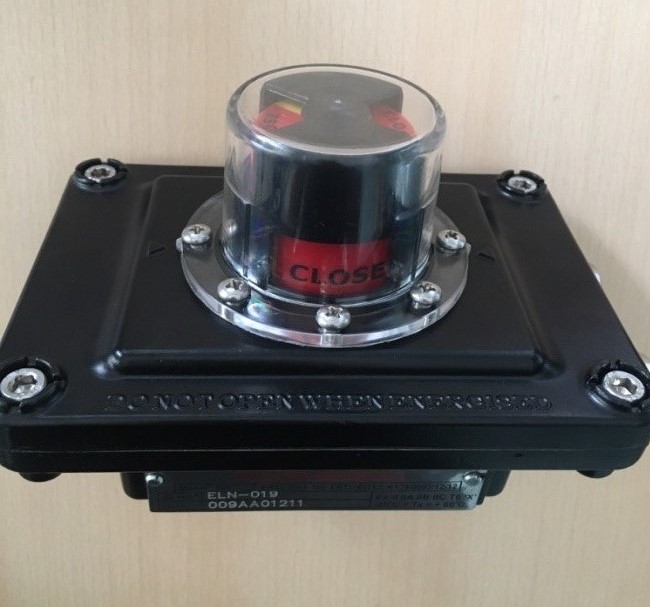

Flameproof Switch Box for Quarter Turn Valves: Series-009
- Flameproof to Ex db IIA,IIB,IIC T6 to IS/IEC 60079-1:2014 & IS/IEC 60079-0:2011 and weatherproof IP67 as per IS/IEC 60529
- 360° Open/Close visual indication with polycarbonate dome
- Pressure die cast Aluminium body (SS optional)
- 1/2” NPT and M20x1.5 Conduit entries
- NAMUR shaft for direct mounting
- Tool-free spring loaded quick cam adjustment
- Prewired terminal strip
- Optional terminal strip for Solenoid valve wiring
- One mounting kit/bracket(compatible with most actuator models) provided
- PCB for compactness
- Number of switches/sensors: 4 (maximum)
- Fool proof design with wrong assemble protection
Flameproof Switch Box for Diaphragm Valves: Series-009L
- Flameproof to Ex db IIA,IIB,IIC T6 to IS/IEC 60079-1:2014 & IS/IEC 60079-0:2011 and weatherproof IP67 as per IS/IEC 60529
- Pressure die cast Aluminium body (SS optional)
- 1/2” NPT and M20x1.5 Conduit entries
- Suitable for Valve/Actuator travel up to 175mm
- Tool-free spring loaded quick cam adjustment
- Prewired terminal strip
- Optional terminal strip for Solenoid valve wiring
- One mounting kit/bracket(compatible with most actuator models) provided
- PCB for compactness
- Number of switches/sensors: 4 (maximum)
Flameproof Switch Box for Gate Valves, Globe Valves and Cylinders: Series-009L
- Flameproof to Ex db IIA,IIB,IIC T6 to IS/IEC 60079-1:2014 & IS/IEC 60079-0:2011 and weatherproof IP67 as per IS/IEC 60529
- Pressure die cast Aluminium body (SS optional)
- 1/2” NPT and M20x1.5 Conduit entries
- Suitable for Valve/Actuator travel from 50mm to up to 775mm
- Tool-free spring loaded quick cam adjustment
- Prewired terminal strip
- Optional terminal strip for Solenoid valve wiring
- One mounting kit/bracket(compatible with most actuator models) provided
- PCB for compactness
- Number of switches/sensors: 4 (maximum)

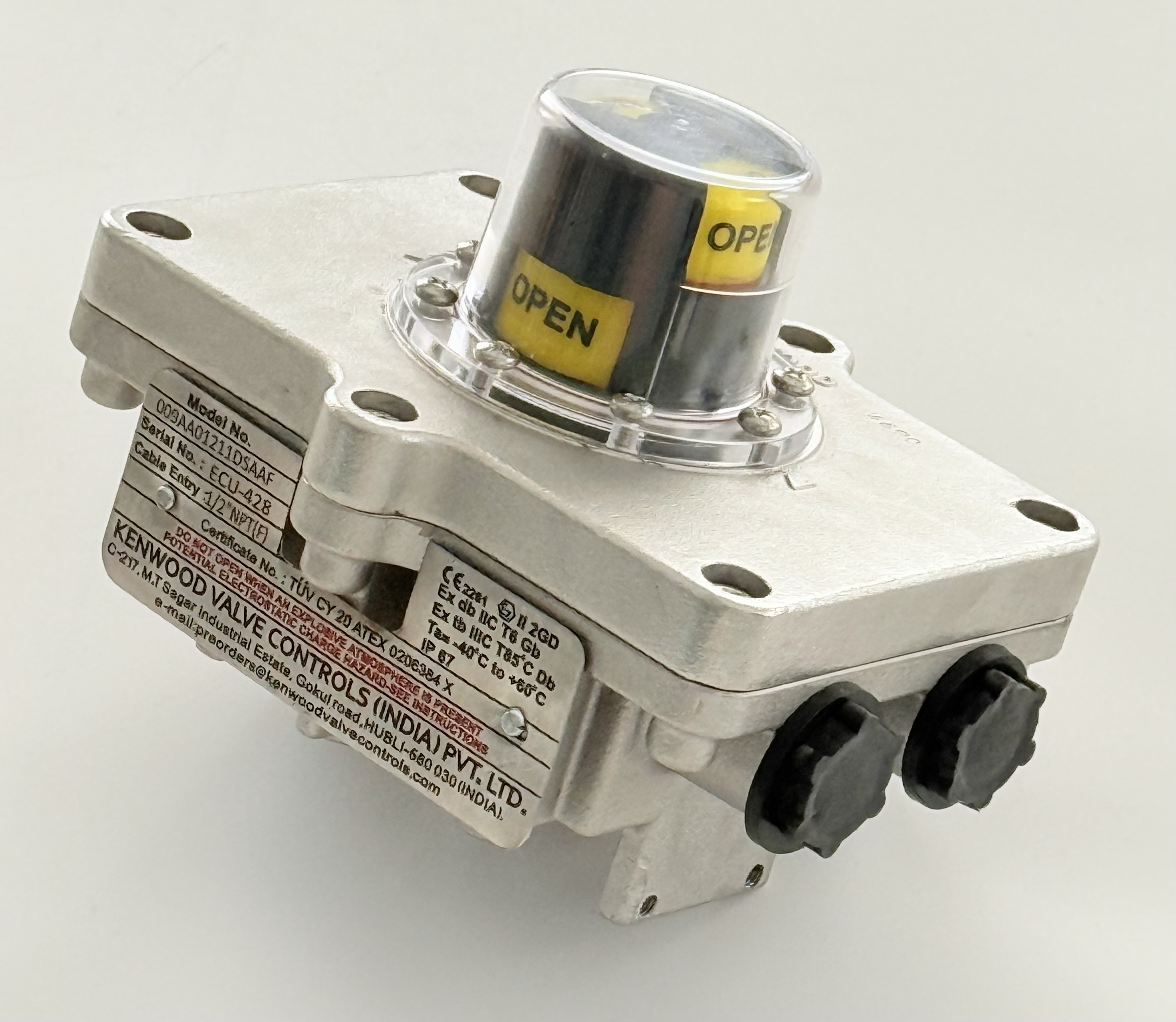

Flameproof Switch Box for Quarter Turn Valves: Series-009XXXXXXXS
- Flameproof to Ex db IIA,IIB,IIC T6 to IS/IEC 60079-1:2014 & IS/IEC 60079-0:2011 and weatherproof IP67 as per IS/IEC 60529
- 360° Open/Close visual indication with polycarbonate dome
- SS316 Investment cast body for corrosive atmosphere
- 1/2” NPT and M20x1.5 Conduit entries
- NAMUR shaft for direct mounting
- Tool-free spring loaded quick cam adjustment
- Prewired terminal strip
- Optional terminal strip for Solenoid valve wiring
- One mounting kit/bracket(compatible with most actuator models) provided
- PCB for compactness
- Number of switches/sensors: 4 (maximum)
- Fool proof design with wrong assemble protection

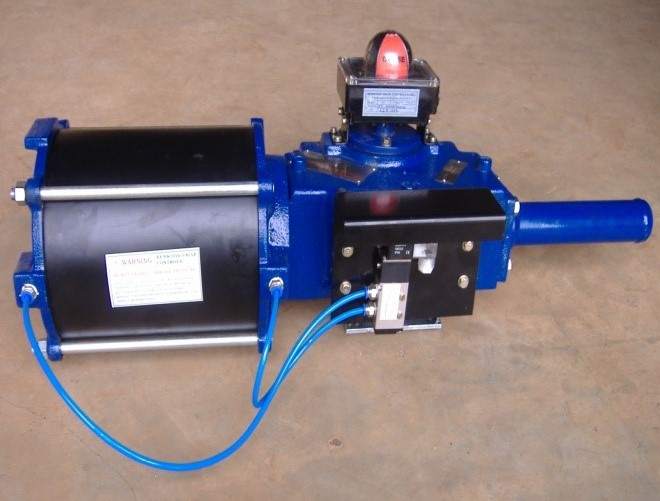

Heavy Duty Scotch-Yoke Quarter Turn Pneumatic Actuator (Double acting)
- Symmetric Scotch-Yoke design suitable for most quarter turn valves
- High strength ductile iron body
- Rust free and light composite material for cylinder barrel which will give long life
- ISO 5211 flange mounting
- NAMUR top mountings for direct mounting of limit switch boxes and positioners
- Torque from 300NM to 46000NM
- Travel : 90 ± 5°
- A canopy for mounting accessories is a standard feature

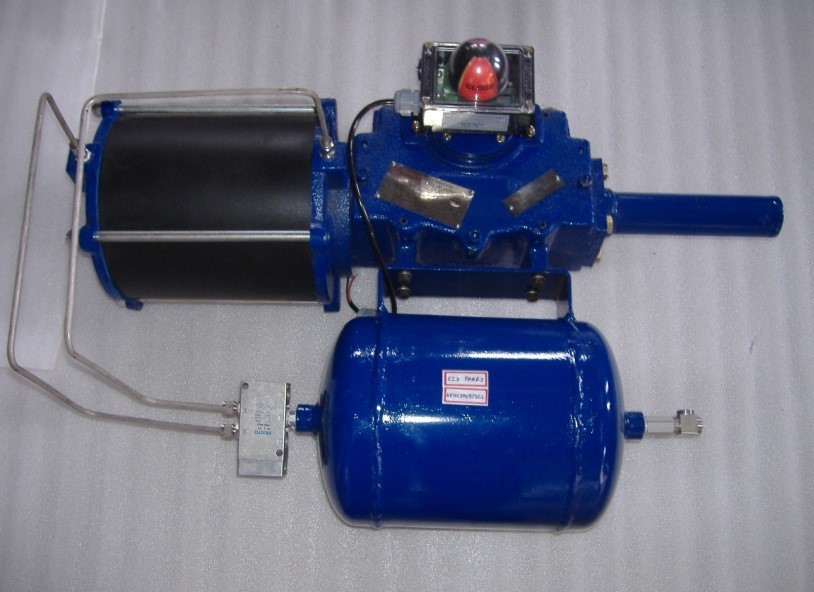

Heavy Duty Scotch-Yoke Quarter Turn Pneumatic Actuator (Failsafe)
- Symmetric Scotch-Yoke design suitable for most quarter turn valves with failsafe arrangement
- High strength ductile iron body
- Rust free and light composite material for cylinder barrel which will give long life
- ISO 5211 flange mounting
- NAMUR top mountings for direct mounting of limit switch boxes and positioners
- Torque from 300NM to 46000NM
- Travel : 90 ± 5°
- A canopy for mounting accessories is a standard feature

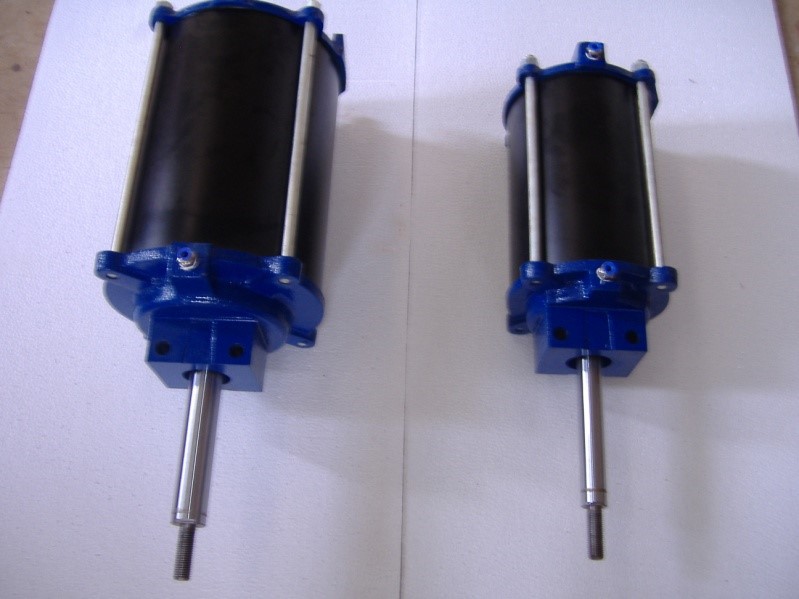

Linear Pneumatic Actuator for Knife Gate Valves
- Designed for on-off or modulating control of Knife gate valve, Tank bottom Valve, Globe and Gate valves
- Standard cylinder barrel material is FRP. Can be offered in carbon steel if required
- Standard Temperature rating : -30 to 100°C
- Optional Temperature rating: -55 to 135°C
- Thrust :3 to 68 KN(Kilo Newton)
- Supply pressure : 40 to 100 psig (2.8 to 7 bar)
- Supply medium : Compressed Air
- Failsafe arrangement or emergency operation can be offered

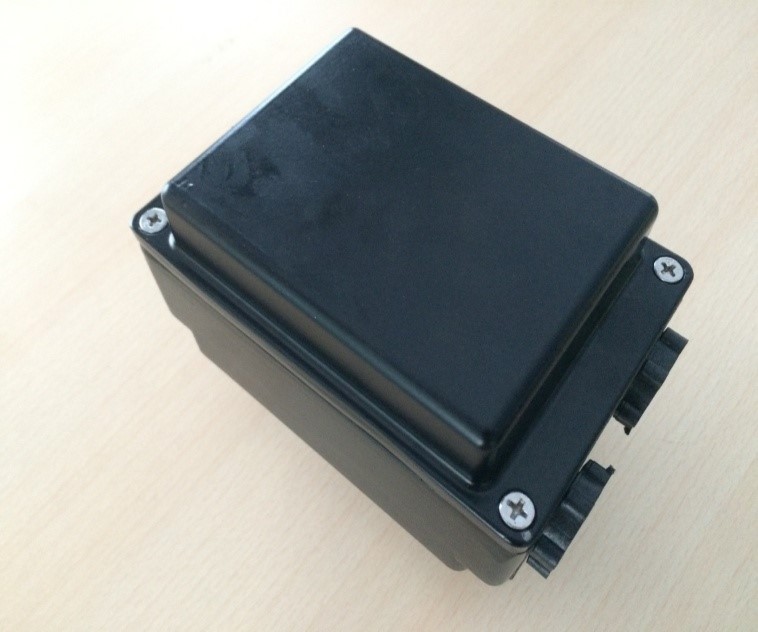

Weatherproof Junction Box: Series-007L/003L/004L
- Weatherproof to IP67 as per IEC 60529
- Pressure die cast Aluminium/FRP/SS Body
- 1/2” NPT; M20x1.5; PG 13.5; 3/4" ET Conduit entries
- PBC mounted terminals for connections up to 16 input and 16 output for compactness
- Number of Cable Entries: 4

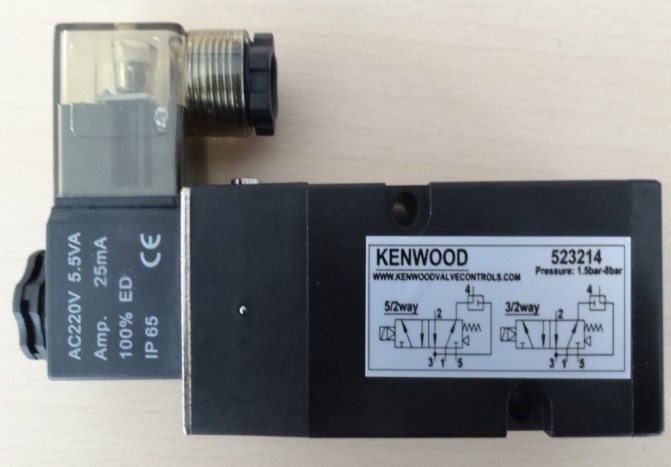

Weatherproof NAMUR mounted Solenoid Valve: Series-523214
- Common valve for both 5/2 way and 3/2way (Convertible)
- Aluminium deep anodized body
- Square moulded coil, weatherproof to IP65
- Voltage rating –24VDC, 220VAC, 110VDC and 110VAC
- 1/4” BSP pressure connection
Air Filter Regulators: Series-KB07
- Compact design and economical
- Rust free zinc pressure die cast body
- Push to lock pressure adjusting knob
- Filter removes solids and liquid particles up to 5micros
- 1/4” BSP or 1/4” NPT pressure connection
- Transparent polycarbonate bowl
- Maximum inlet pressure-10kg/cms²
- Mounting bracket is comes as a standard accessories
- Pressure gauge comes as a standard

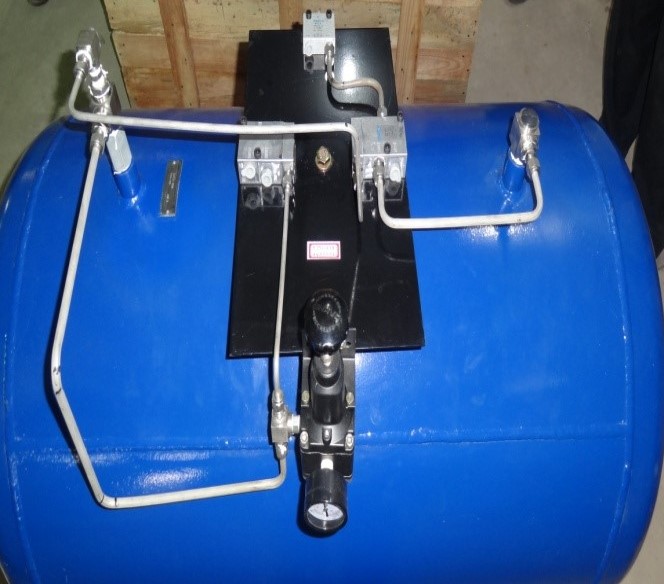

Air Reservoir for Failsafe Systems and Emergency Operation of Actuated Valves
- Available in carbon steel and Stainless steel material
- Air vessels design and material confirm to ASME Sec VIII
- Failsafe arrangement or emergency operation can be for double acting or single acting actuator
- Arrangement can be for ON-OFF or control duty applications and for any special logic as per applications
- It can be supplied with all accessories mounted onto the air reservoir
- Can be supplied up to 3000 liters capacity
